Hong-Er Machine : APC Punching Machine-160T

About APC precision punching machine :

1. The machine body was welded of quality steel sheet andtreated by tension elimination. This improve stability and reliability forpower press.

2. In order to guarantee the machine running in stable andsmooth, adopts the design of symmetrical two slid boards with balancer .

3. The precision of mold adjusting up to 0.1mm, safety,reliable and convenient.

4. Crank, Gear, Connect bar are oxidized hardening andmilled, having super comprehensive mechanical performance and durable function.

5. Reasonable structural design, is convenient for automaticproduction and line production.

6. Used reliable high intensity clutch / brake and twinelectromagnetic valve,overloading protector an guarantee safe productionall-around.

7.Used high-grade alloy steel ,doublecrank, wide work center with connection bar structure, the optimized design issuitable for large sixes and the mold. bearing large impact loading as well aspressing of eccentric mold.

8.Adopted closed electric, havecompatible with any automatic equipments.

Product Features;

1.Reliability;

High rigidity, low integrated clearance, small changing in mold height,

small deviation of dynanmic center, the mold life in large scale, small transfiguration for press

2.Productivity;

High precision processing, high efficiency operation, machine to ensure products of high quality

3. Operational;

Facilitate the operation of implementation, fixed locking type six-surface guide way, cutting low-noise, safe and reliable operating state

Technology Informations & Specification

Capacity	160 Ton
Model	APC-160
Type	V	H
Rated Tonnage point (mm)	6	3
Stroke per minute(spm)	30-55	40-85
Stroke(mm)	200	130
Die height(mm)	450	485
Slide adjustment(mm)	100

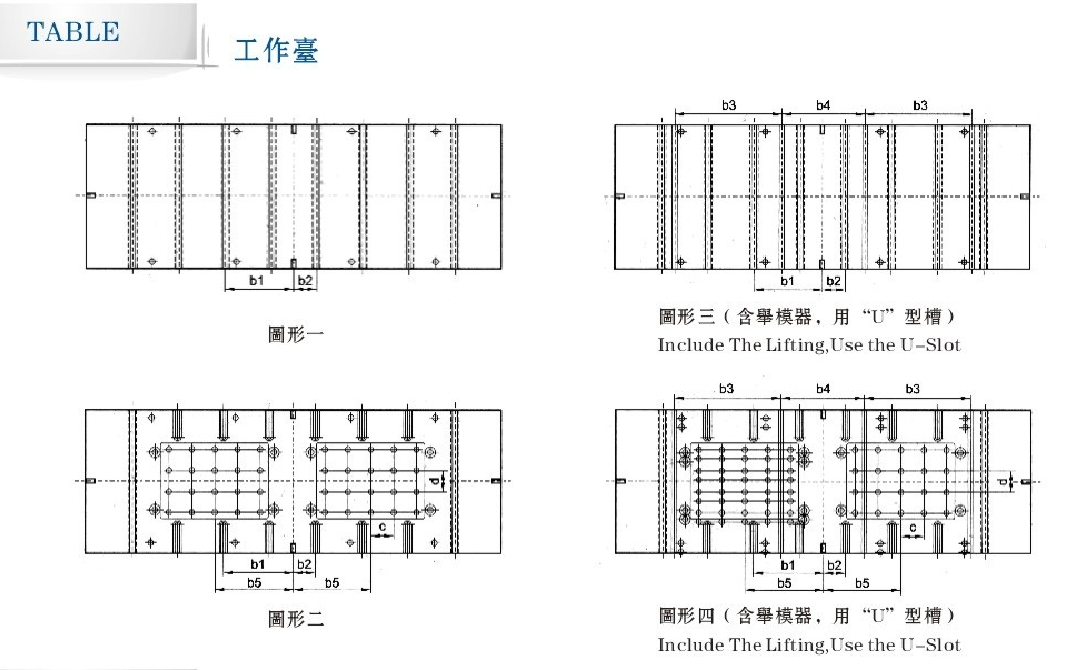

Bolster area(mm)	2000760150
Slide area(mm)	160055070
Main motor(KW*P)	VS15*4
Air pressure(kg/cm²⁾	6
Press precision	GB/JIS1 class
Press dimension(mm)	194022003709
Press weight(ton)	20
Effective area of die cushion(mm)	4102602pcs
Package	Film and wooden case
Delivery time	25 working days
After-sale service	12 months

Accessories

Standard Unit	Optional
High performance dry clutch & brake	Die cushion
Electronic crank angle led display	Electrical automatic lubrication system
Electronic speed led display	Safety light curta in
Off/inching/safety/one stroke/continuous	Slide knock-out device
Hydraulic overload protector	Main motor reversing circuit
Main motor (adjustable)	Foot switch
Overrun detector	Safety die block with plug
Portable2-hand push	Dual solenoid value with
Dual solenoid valve	Missfeed detector
Automatic slide adjust	Quick mold replace mechanism
Digital die height indication (unit0.1mm)	Quick die change system
Manual lubrication system	Upper die clamper
Total counter ,6 digits	Die lifter
Preset counter , 6 digits	Die arm
Maintenance counter , 6 digits	Automatic feed equipment
Life counter, 6 digits	NC straightener feed c/w uncoiler (3 in 1)
Electronic rotary cam switch (6 spare channel)	NC roller feeder
Air ejector 1/2”one channel	Straightener c/w uncoiler (2 in 1)
Air source receptacle 1/2”two channel	Straightener
Missfeed detection circuit
Power receptacle (available only for single phase 110V power source siring by used )

Key components list with brand

No.	Key Components List	Brand
1	Motor	TECO,Taiwan
2	Inverter	Yaskawa
3	TOYOOK	MAC,America
4	MultistageSwitch	Fuji,Japan
5	Solenoid valve	MAC,America
6	Pressure switch	Fuji,Japan
7	Air switch and external parts	Fuji,Japan
8	Switching power supply	Fuji,Japan
9	Grease seal	SKY,Japan
10	Hydraulic overloading protection device	Kingair,Taiwan
11	Manual slide adjustment device	Kingair,Taiwan
12	Electric slide adjustment device	MAC,America
13	Main motor(speed adjustable)	Kingair/TECO
14	Mechanical die height indicator	Jinsong
15	Electric die height indicator	Jingsong
16	Slide and mould balancing device	Kingair
17	Crank Angle Indicator	Kingair
18	Counter	Guangqi,Taiwan
19	Air source Receptacle	Fuji,Japan
20	Over-run Safety Device	Fuji,Japan
21	Jet air device	Kingair,Taiwan
22	Filter	SMC,Japan
23	Pressure regulating valve	SMC,Japan
24	Atomized lubricator	SMC,Japan
25	Manual grease pump	Ishan,Taiwan
26	Bearing	NSK,Japan
27	Clutch	OPMI
28	Swith button	Fuji,Japan
29	Crank	Edmund
30	A set of assitant tools	WIGA,Taiwan
